Production (Site) Volume and Density

Volume and Density data allows you to further analyze the performance of your grade and compact assets on a site for the selected date range. Click the desired toggle  to switch and view.

You can schedule volume reports either on Map (Insights) or on Reports to periodically receive updates on volume work completed and remaining. Refer to Volume & Density to know more.

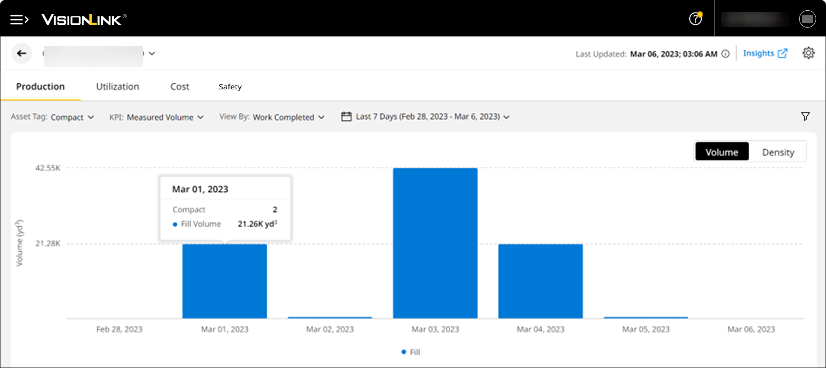

Volume

Displays data as a bar graph and shows volume of grade or compact completed in a site. Hover over the bars on the graph to learn specific details of Compact and Fill Volume.

You can also view hourly data by clicking on a specific date.

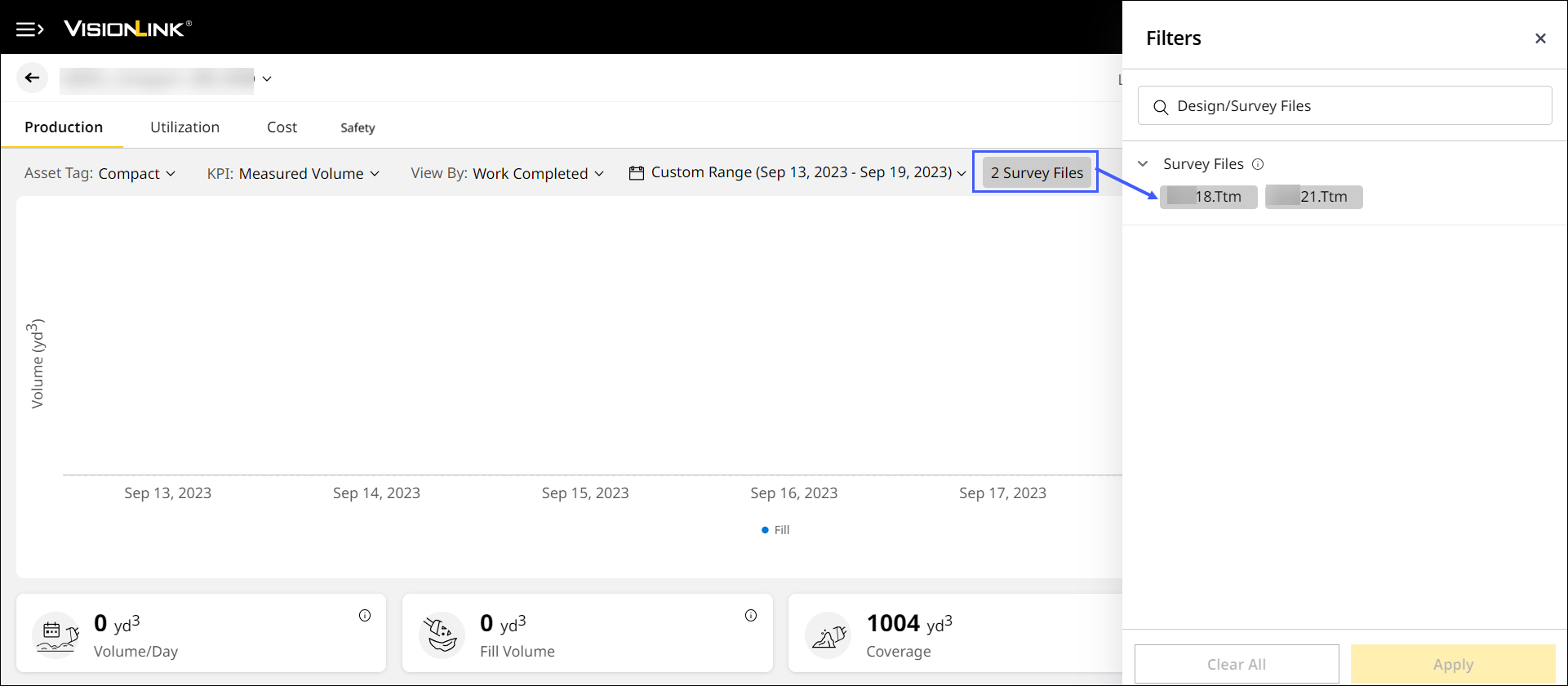

If survey (.ttm) files are uploaded for volume calculation, the file count appears as chip next to date range. Click to view file details under Filters.

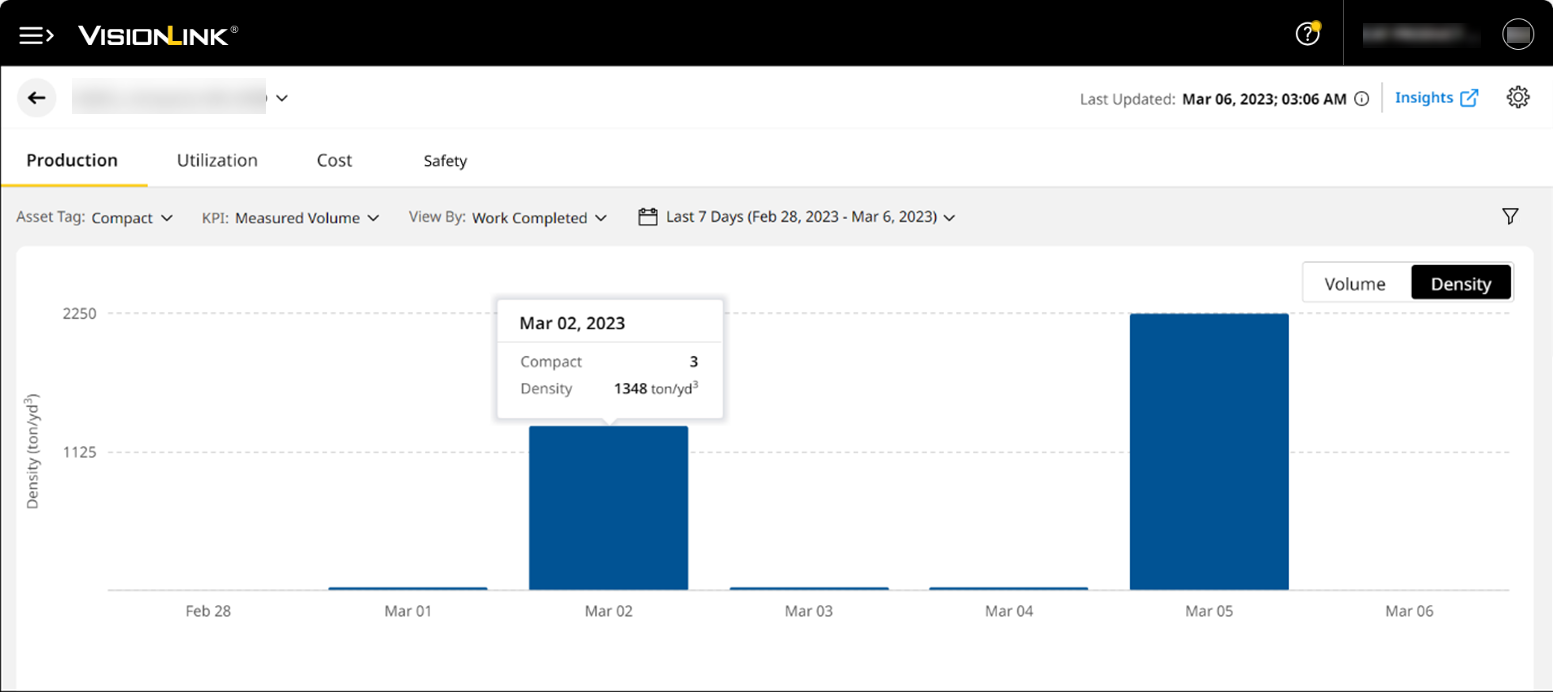

Density

Displays data as a bar graph and shows density of compact completed in a site. Hover over the bars in the graph to learn specific Compact and Density details.

• You can view density data only if weight values are added to calculate compaction density. Refer to Manage Weights to learn more about adding or editing weights.
• Density data doesn’t change if you apply any filters. Production (Site) displays the entire density data for the selected date range instead.
