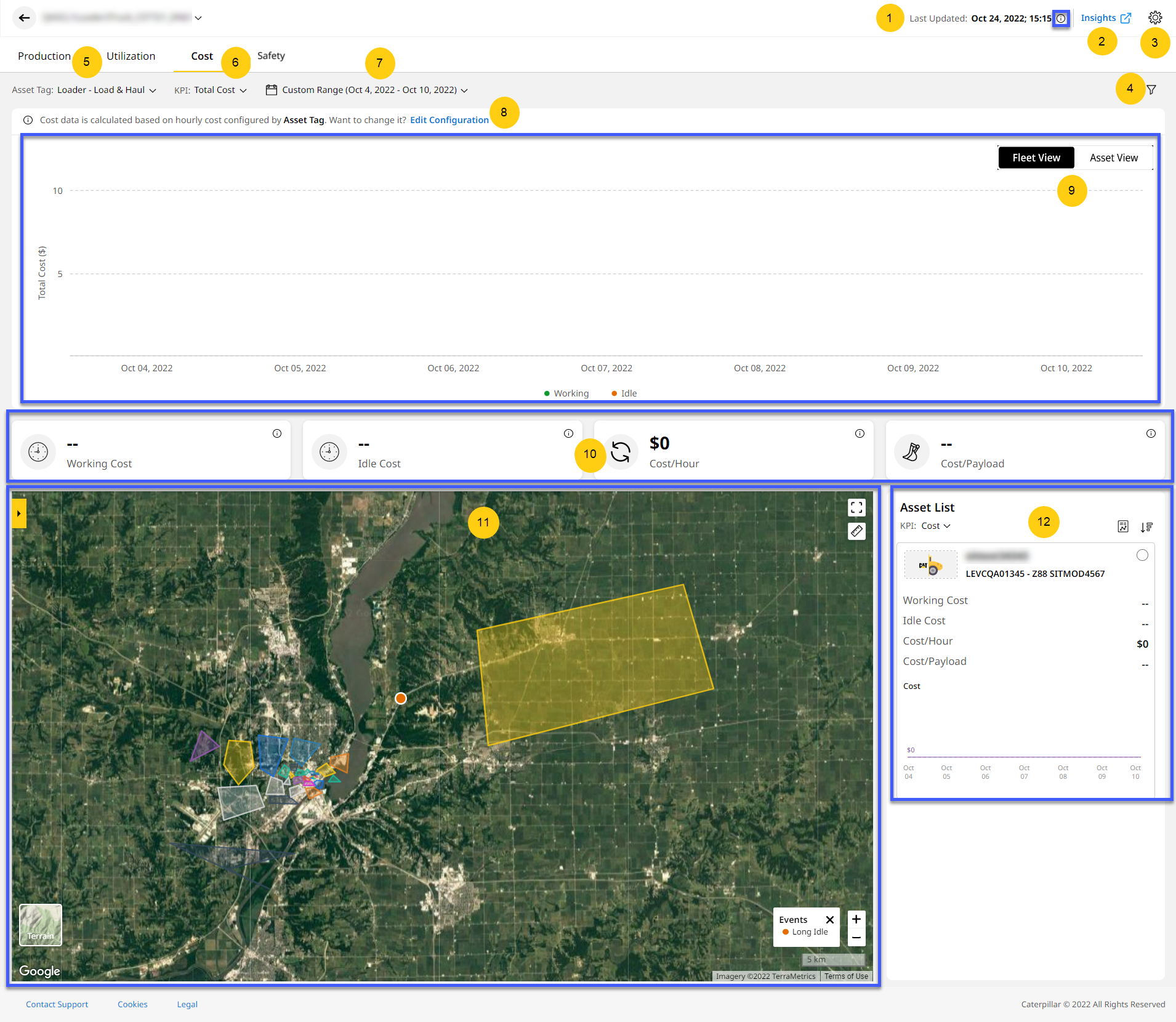

Cost (Site) Tab

View and estimate overall cost breakdowns of a selected site on Cost tab of Site Summary.

After configuring the cost dashboard, you can view here displays the site's Cost KPIs in chart and map view. View and select KPIs from the drop down.

The application calculates cost values using utilization data and current cost configurations.

So, historical data will be based on the cost configurations at that time and any changes made to the configuration will reflect on the calculations from then onward.

Last Updated: View timestamp of the last reported data or change. Click info to view the time zone (country/city) of the selected site.
Insights: Click to open Insights.
Site Preferences : Customize Site Summary dashboard to your needs. Change the Default Tab, Asset Tags, KPI, and Date Range.
Filters: Filter based on single or multiple asset IDs and shifts for a selected date range, asset tag and KPI.
Asset Tag: Select an asset tag for which the above KPI data is required.
KPI: Selects the following KPI:
- Total Cost: Sum of costs incurred on the site across various operations.
Date Range: Choose the date range to view the KPI data for the asset tag.
Edit Configuration: Informs the basis for configuring the cost dashboard. Want to change it to Asset Model or Asset ID? Click the Edit Configuration option.
Asset/Fleet View Dashboard: View site KPI data in Asset/Fleet View, based on selected asset tags and date range.
- Asset View displays the KPI data as charts. Values set when you configure the cost dashboard show up here as line graphs.
- Fleet View displays the KPI data as charts. Values set when you configure the cost dashboard show up here as line graphs, demarcated by date.
KPI Cards: The KPI cards display total cost data for the asset tags selected. The default KPIs are:

Map View: The events in the slider pane will change based on the KPIs selected. For instance, selecting Load Count will display load events data in the map view. Similarly, selecting Payload will show dump events data.

Open the slider to select or deselect any zones or events to view. Events are clustered by default for locations where multiple events occur.
Click on the cluster to zoom in and view individual event hotspot.
Click on a hotspot to view the info card that has the asset icon, asset ID, serial number, KPI data, timestamp, and playback view icon.
Use the navigation arrows on either side of the info card to view details of other events in the same location.

Items	Features	Description
	Zoom In	Zoom in the map for viewing the desired asset’s load and dump events in map.
	Zoom Out	Zoom out the map for viewing all the available asset’s load and dump events in map.
	Satellite	View the map in satellite mode.
	Terrain	View the map in terrain mode.
	Slider	• Check and visualize events (dump, load, etc.). • Select and visualize Site Images. • Select or deselect Zones (if created) on map view. • Toggle on/off site boundary. • Toggle on/off deleted zones.
	Double Up Arrow	View the legend events on the map.
	Full Screen	Expand the entire screen of map view.
	Polyline	Draw lines on the map for measuring distance and area. Connect lines through points to draw polygons on the map. • When you clicks the polyline measure icon, the following measure distance pop-up is displayed on the map: View Image • The auto-calculated distance and area are displayed for the traced path on the map and measure distance pop-up. • The drawn line can be completed by double-click on the plotted point and can be deleted by a single clicking on the specific point. • The polyline measure can be turned off by clicking the closed icon of the measure distance pop-up.

Asset List: Find list of all the configured assets in the site and a brief overview of each.
